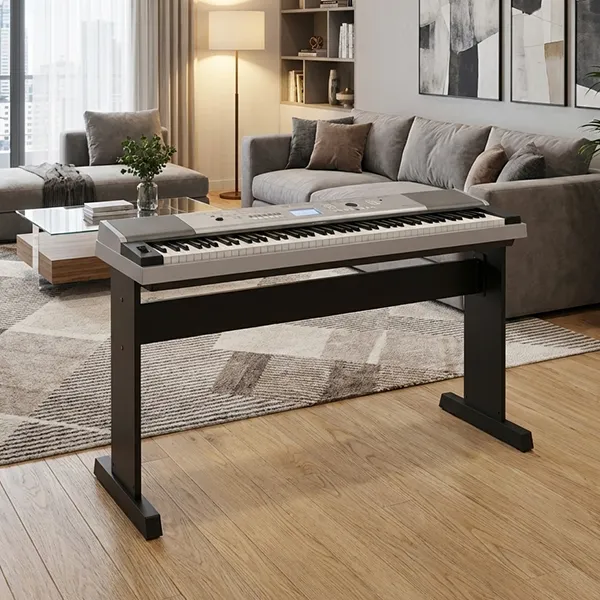

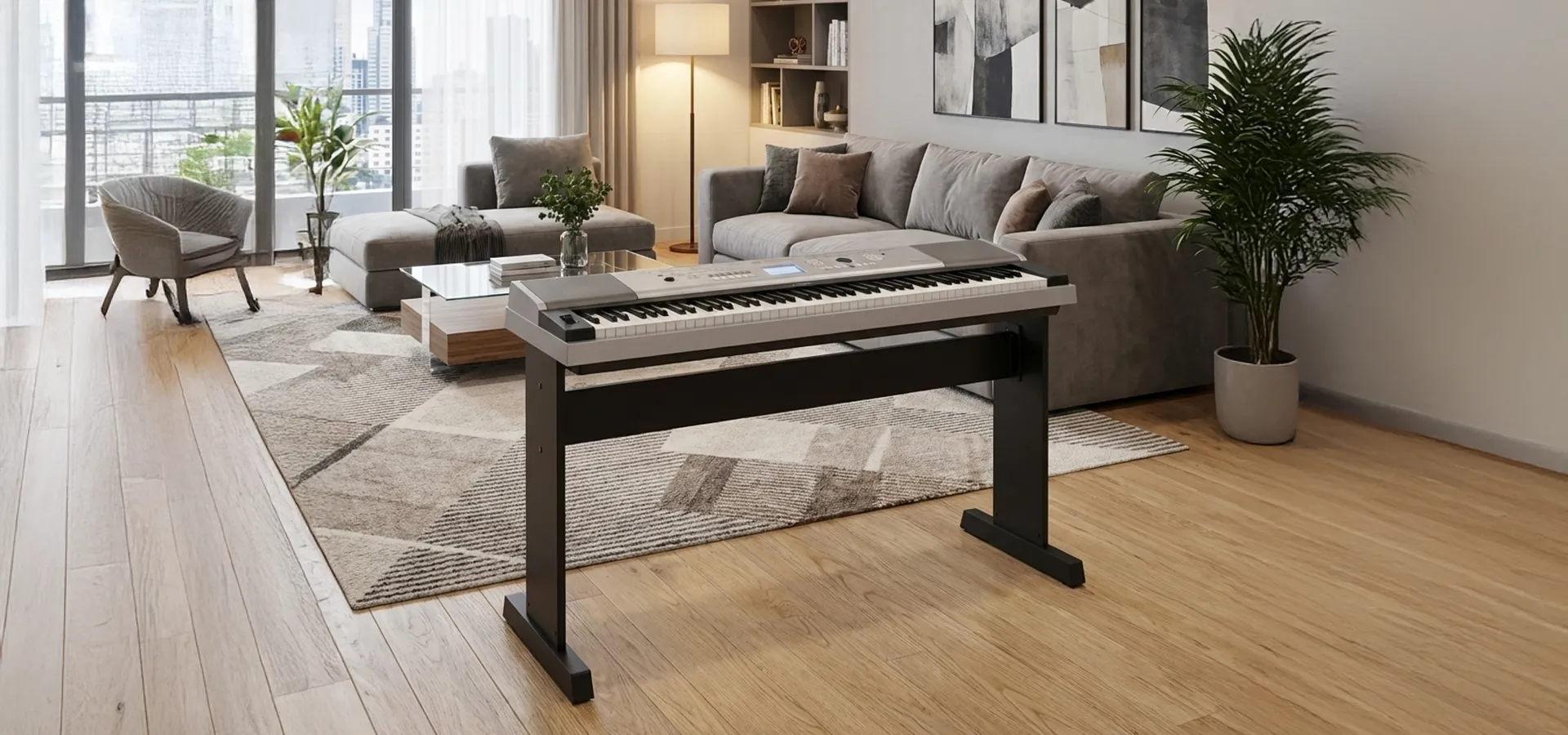

Thông số kĩ thuật Đàn Piano Yamaha DGX520

Keyboards : 88-key box type (A-1–C7), with Touch Response.

Display : 320 x 240 dots LCD display (backlit)

Setup :

• STANDBY/ON
• MASTER VOLUME: MIN–MAX
• LCD CONTRAST

Panel Controls : SONG, VOICE, STYLE, EASY SONG ARRANGER, P.A.T. ON/OFF, LESSON L, LESSON R, LESSON START, METRONOME ON/OFF, PORTABLE GRAND, DEMO, FUNCTION, MUSIC DATABASE, HARMONY ON/OFF, DUAL ON/OFF, SPLIT ON/OFF, TEMPO/TAP, [0]–[9], [+], [-], CATEGORY, Dial, REPEAT & LEARN (ACMP ON/OFF), A-B REPEAT (INTRO/ENDING/rit.), PAUSE (SYNC START), START/STOP, REW (MAIN/AUTO FILL), FF (SYNC STOP), REGIST MEMORY ([MEMORY/BANK], [1], [2]), SONG MEMORY (REC, [1]–[5], [A]), File Control [MENU], File Control [EXECUTE], [EXIT], [LYRICS], [SCORE], [CHORD FINGERING]

Realtime Control : Pitch Bend Wheel

Voice :

• 127 panel voices + 12 drum/SFX kits + 361 XGlite voices
• Polyphony: 32
• DUAL
• SPLIT

Style :

• 150 Preset Styles + 1 User Style File
• Style Control: ACMP ON/OFF, SYNC STOP, SYNC START, START/STOP, INTRO/ENDING/rit., MAIN/AUTO FILL
• Fingering: Multi Finger, Full Keyboard
• Style Volume

Music Database : 267

Education Feature

• Dictionary
• Lesson 1–3, Repeat & Learn

Registration Memory : 8 banks x 2 types

Function :

• VOLUME: Style Volume, Song Volume
• OVERALL: Tuning, Transpose, Split Point, Touch Sensitivity, Pitch Bend Range, Chord Fingering
• MAIN VOICE: Volume, Octave, Pan, Reverb Level, Chorus Level
• DUAL VOICE: Volume, Octave, Pan, Reverb Level, Chorus Level
• SPLIT VOICE: Volume, Octave, Pan, Reverb Level, Chorus Level
• EFFECT: Reverb Type, Chorus Type, Master EQ Type, Sustain
• HARMONY: Harmony Type, Harmony Volume
• Performance assistant technology: Performance assistant technology Type
• PC: PC Mode
• MIDI: Local On/Off, External Clock, Initial Send, Keyboard Out, Style Out, Song Out
• METRONOME: Time Signature Numerator, Time Signature Denominator, Metronome Volume
• SCORE: Quantize
• LESSON: Lesson Track (R), Lesson Track (L), Grade
• UTILITY: Demo Cancel, Language

Effects :

• Reverb: 9 types
• Chorus: 4 types
• Harmony: 26 types

Song :

• 30 Preset Songs + 5 User Songs + Accessory CD-ROM Songs (70)
• Song Clear, Track Clear
• Song Volume
• Song Control: REPEAT & LEARN, A-B REPEAT, PAUSE, REW, FF, START/STOP

Performance assistant technology :

• Chord, Chord/Free, Melody, Chord/Melody

Recording :

• Song
• User Song: 5 Songs
• Recording Tracks: 1, 2, 3, 4, 5, STYLE

MIDI :

• Local On/Off • Initial Send • External Clock
• Keyboard Out • Style Out • Song Out

Auxiliary jacks : PHONES/OUTPUT, DC IN 12V, USB TO HOST, USB TO DEVICE, SUSTAIN

Amplifier : 6W + 6W

Speakers : 12cm x 2 + 3cm x 2

Power Consumption : 22W

Power Supply : Adaptor: Yamaha PA-5D AC power adaptor

Dimensions (W x D x H) : 1,354 x 485 x 775 mm

Weight : 17kg
